TS-MPPT-60-600V-48-DB

Download Datasheet Request Quote

Note : Your request will be directed to Morningstar Corporation.

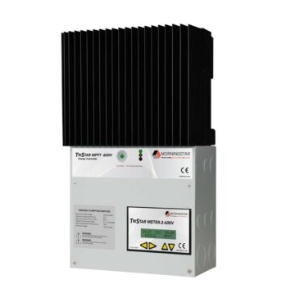

TS-MPPT-60-600V-48-DB Image

The TS-MPPT-60-600V-48-DB from Morningstar Corporation is a Solar Charge Controllers with System Voltage 24 to 60 V, Rated Current 60 A, Power Rating 3200 W, Efficiency 97.9 %, Operating Temperature -40 to 45 Degree C. Tags: Maximum Power Point Tracking (MPPT). More details for TS-MPPT-60-600V-48-DB can be seen below.

Product Specifications

Product Details

  • Part Number
    TS-MPPT-60-600V-48-DB
  • Manufacturer
    Morningstar Corporation
  • Description
    24 to 60 V, 60 A, MPPT Solar Charger Controller

General

  • System Voltage
    24 to 60 V
  • Rated Current
    60 A
  • Power Rating
    3200 W
  • Type
    Maximum Power Point Tracking (MPPT) View all
  • Battery Compatibility
    Li-ion
  • Efficiency
    97.9 %
  • Protection Grade
    IP20
  • Dimension
    54.2 x 22.1 x 14.9 cm
  • Operating Temperature
    -40 to 45 Degree C

Technical Documents
View details on the manufacturer's website
