SM141K08TF

Note : Your request will be directed to Anysolar.

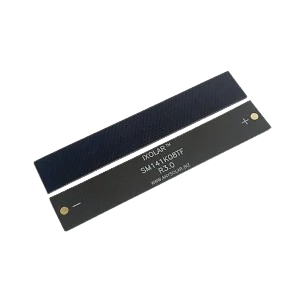

SM141K08TF Image

The SM141K08TF from Anysolar is a Solar Cell based on monocrystalline silicon technology. It provides an open circuit voltage of 5.53 V and a short circuit current of 58.6 mA. This solar cell delivers a peak power of up to 246 mW and has a solar cell efficiency of 25%. It can operate under low light conditions while offering an increased battery life and run time in a small footprint. This high efficiency solar cell exhibits a very good photonic response over a wide range of wavelengths, making it suitable for both indoor and outdoor environments. It features a design that allows it to connect SolarMD flexibly in series and/or parallel to fulfill the custom-specific application’s power requirements. This solar panel is available as a module that measures 88 x 15 x 1.2 mm and is ideal for battery chargers for portables such as cell phones, PDAs, GPS systems, green electricity generation, power backup for UPS, sensors, and wearables.

Product Specifications

Product Details

  • Part Number
    SM141K08TF
  • Manufacturer
    Anysolar
  • Description
    246 mW Monocrystalline Solar Cell

General

  • Output Power
    246 mW
  • Output Voltage
    4.46 V
  • Output Current
    55.1 mA
  • RoHS Compliant
  • Temperature Operating Range
    -40 to 90 Degree C
  • Industry
    Industrial, Commercial
  • Applications
    Battery chargers for portables such as cell phones, PDAs, GPS-Systems, Green” electricity generation, Power backup for UPS, Sensors, Wearables
  • Dimension
    88 x 15 x 1.2 mm ( W x L x H )
  • Package Type
    Panel View all
  • Note
    Weight :- 2.8 Gram , Open Circuit Voltage (Voc) :- 5.53 V, Short Circuit Current (Isc) :- 58.6 mA, Module Efficiency :- 25.0 %, Monocrystalline Solar Panel
