LR7-54HVH-480M

Download Datasheet Request Quote

Note : Your request will be directed to Longi.

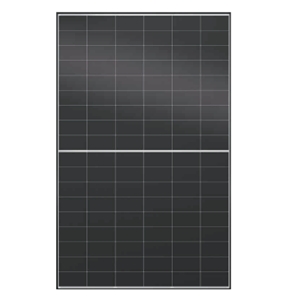

LR7-54HVH-480M Image

The LR7-54HVH-480M from Longi is a Solar Panels with Output Power 480 W, Output Voltage 33.28 V, Output Current 14.43 A, Temperature Operating Range -40 to 85 Degree C. Tags: Panel. More details for LR7-54HVH-480M can be seen below.

Product Specifications

Product Details

  • Part Number
    LR7-54HVH-480M
  • Manufacturer
    Longi
  • Description
    480 W, 14.43 A, 33.28 V, Solar Panel

General

  • Output Power
    480 W
  • Output Voltage
    33.28 V
  • Output Current
    14.43 A
  • Temperature Operating Range
    -40 to 85 Degree C
  • Industry
    Industrial, Commercial
  • Applications
    Use high-transparency and low-reflection glass to enhance the anti-glare effect, Peak efficiency with top power generation performance
  • Dimension
    1800 x 1134 x 30 mm
  • Package Type
    Panel View all
  • Note
    Weight :- 21.6 Kg , Open Circuit Voltage (Voc) :- 40.29 V, Short Circuit Current (Isc) :- 15.13 A, Module Efficiency :- 23.5 %, IP Rating :- IP68, Bifacial Monocrystalline Solar Panel
