625-645 W Helios Module Series

Download Datasheet Request Quote

Note : Your request will be directed to Phono Solar Technology.

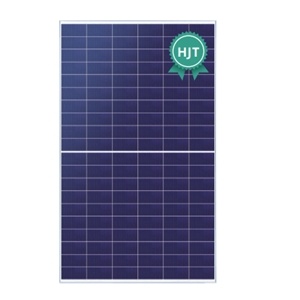

625-645 W Helios Module Series Image

The 625-645 W Helios Module Series from Phono Solar Technology is a Solar Panels with System Voltage 1500 VDC, Output Power 625 to 645 W (STC), 475 to 491 W (NOCT), Output Voltage 37.86 to 38.51 V (STC), 35.71 to 36.33 V (NOCT), Output Current 16.51 to 16.75 A (STC), 13.31 to 13.50 A (NOCT), Open Circuit Voltage 45.13 to 45.82 V (STC), 43.07 to 43.73 (NOCT). Tags: Panel. More details for 625-645 W Helios Module Series can be seen below.

Product Specifications

Product Details

  • Part Number
    625-645 W Helios Module Series
  • Manufacturer
    Phono Solar Technology
  • Description
    645 W, 16.75 A, 38.51 V, Monocrystalline Solar Panel

General

  • Solar Panel Type
    Monocrystalline View all
  • Technology
    HJT (Heterojunction Technology) View all
  • System Voltage
    1500 VDC
  • Output Power
    625 to 645 W (STC), 475 to 491 W (NOCT)
  • Output Voltage
    37.86 to 38.51 V (STC), 35.71 to 36.33 V (NOCT)
  • Output Current
    16.51 to 16.75 A (STC), 13.31 to 13.50 A (NOCT)
  • Open Circuit Voltage
    45.13 to 45.82 V (STC), 43.07 to 43.73 (NOCT)
  • Short Circuit Current
    17.31 to 17.55 A (STC), 13.95 to 14.15 A (NOCT)
  • Efficiency
    22.08 to 22.79 %
  • Series Fuse Rating
    30 A
  • Front Side Maximum Static Loading
    5400 Pa
  • Rear Side Maximum Static Loading
    2400 Pa
  • Cable
    4mm² (IEC), (+): 450mm, (-): 250mm or Customized Length
  • Temperature Operating Range
    -40 to 85 Degree C
  • Industry
    Industrial, Commercial
  • Dimension
    2172 x 1303 x 35 mm
  • Package Type
    Panel View all
  • IP Rating
    IP68
  • Weight
    35.3 Kg
