ZXM7-SHLDD120 Series

Download Datasheet Request Quote

Note : Your request will be directed to Znshine.

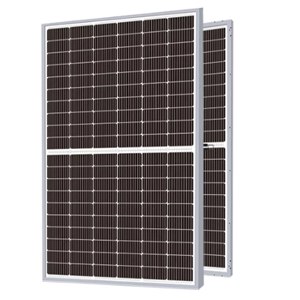

ZXM7-SHLDD120 Series Image

The ZXM7-SHLDD120 Series from Znshine is a Solar Panels with System Voltage 1500 VDC, Output Power 440 to 465 W (STC), 328.80 to 347.60 W (NMOT), Output Voltage 34.20 to 35.20 V (STC), 31.80 to 32.70 V (NMOT), Output Current 12.87 to 13.22 A (STC), 10.34 to 10.63 A (NMOT), Open Circuit Voltage 41.10 to 42.10 V (STC), 38.40 to 39.30 V (NMOT). Tags: Panel. More details for ZXM7-SHLDD120 Series can be seen below.

Product Specifications

Product Details

  • Part Number
    ZXM7-SHLDD120 Series
  • Manufacturer
    Znshine
  • Description
    465 W, 35.2 V, Monocrystalline Solar Panel

General

  • Solar Panel Type
    Monocrystalline View all
  • Technology
    PERC (Passivated Emitter and Rear Cell) View all
  • System Voltage
    1500 VDC
  • Output Power
    440 to 465 W (STC), 328.80 to 347.60 W (NMOT)
  • Output Voltage
    34.20 to 35.20 V (STC), 31.80 to 32.70 V (NMOT)
  • Output Current
    12.87 to 13.22 A (STC), 10.34 to 10.63 A (NMOT)
  • Open Circuit Voltage
    41.10 to 42.10 V (STC), 38.40 to 39.30 V (NMOT)
  • Short Circuit Current
    13.62 to 13.97 A (STC), 11.00 to 11.28 A (NMOT)
  • Efficiency
    20.39 to 21.55 %
  • Series Fuse Rating
    30 A
  • Cell Configuartion
    Half-cell
  • Cell Orientation
    120 (6 x 20) Cells
  • Front Side Maximum Static Loading
    5400 Pa
  • Rear Side Maximum Static Loading
    2400 Pa
  • Bus Bar
    10
  • Cable
    4 mm², 350 mm (With Connectors)
  • Connector
    MC4-compatible
  • Temperature Operating Range
    -40 to 85 Degree C
  • Industry
    Industrial, Commercial
  • Dimension
    1903 x 1134 x 30 mm (With Frame)
  • Package Type
    Panel View all
  • IP Rating
    IP68
  • Weight
    26.5±1 kg
