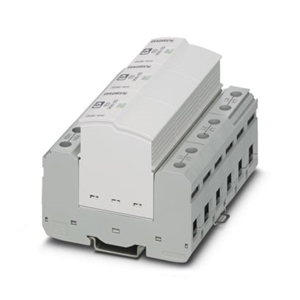

2905419 Image

The 2905419 from Phoenix Contact is a Three-Phase Plug-in Lightning Current and Surge Arrester that has been designed for universal use with optimum energy coordination between the lightning current arrester and the device. It has a voltage rating (AC) of 12 - 250 V and 125 V (DC). This surge arrester is designed with Spark Gap technology with low residual voltage characteristics to provide excellent protection against high-energy lightning currents. It offers a low voltage protection level for direct protection of end devices in the main distribution area. This surge arrester includes a mechanical/visual status indicator and remote indication contact to provide status information and has consistently pluggable protection modules for easy maintenance. It is available in a DIN rail-mount package that measures 106.8 x 95.2 x 74.5 mm.

Product Specifications

Product Details

  • Part Number
    2905419
  • Manufacturer
    Phoenix Contact
  • Description
    250 V Three-Phase Plug-in Lightning Current and Surge Arrester

General

  • Type of Surge Protector
    AC Surge Protector View all
  • Voltage Rating
    12 to 250 V
  • Current Rating
    0.01 to 1 A
  • RoHS Compliant
  • Temperature Operating Range
    -40 to 80 Degree C
  • Industry
    Infrastucture, Industrial
  • Application
    Railway industry, Transportation infrastructure, Smart City
  • Dimension
    106.8 x 95.2 x 74.5 mm
  • Package Type
    DIN Rail Mount View all
