ERZC20EK541P

Download Datasheet Request Quote

Note : Your request will be directed to Panasonic Corporation.

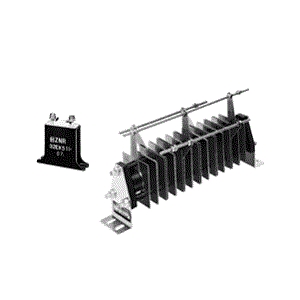

ERZC20EK541P Image

The ERZC20EK541P from Panasonic Corporation is a Varistor with AC Voltage Rating 264 V, DC Voltage Rating 373 V, Clamping Voltage 785 V, Temperature Operating Range -40 to 85 Degree C. Tags: Chassis Mount. More details for ERZC20EK541P can be seen below.

Product Specifications

Product Details

  • Part Number
    ERZC20EK541P
  • Manufacturer
    Panasonic Corporation
  • Description
    264 V 373 V 785 V ZNR Varistor

General

  • Types of Varistor
    ZNR Varistor View all
  • AC Voltage Rating
    264 V
  • DC Voltage Rating
    373 V
  • Clamping Voltage
    785 V
  • RoHS Compliant
    Yes View all
  • Temperature Operating Range
    -40 to 85 Degree C
  • Industry
    Industrial
  • Applications
    Surge protection of SCR power controllers, Surge protection of SCR power sources
  • Dimension
    48 x 14 x 42 mm
  • Package Type
    Chassis Mount View all
