EL-BSWB-120Vdc

Wind Turbine Charge Controllers by Elege New Energy
15 more product from this company
Request Quote

Note : Your request will be directed to Elege New Energy.

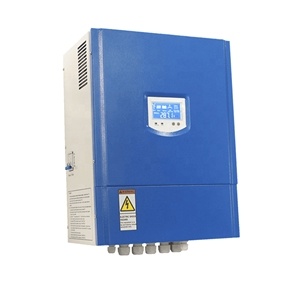

EL-BSWB-120Vdc Image

The EL-BSWB-120Vdc from Elege New Energy is a Wind Turbine Charge Controllers with Rated Power 5 to 10 kW, Rated Current 63 A, System Voltage 120 V, Operating Temperature -30 to 60 Degree C. Tags: Pulse Width Modulation (PWM). More details for EL-BSWB-120Vdc can be seen below.

Product Specifications

Product Details

  • Part Number
    EL-BSWB-120Vdc
  • Manufacturer
    Elege New Energy
  • Description
    120 V, 63 A, 5 to 10 kW, PWM Wind Turbine Charge Controller

General

  • Type
    Pulse Width Modulation (PWM) View all
  • Rated Power
    5 to 10 kW
  • Rated Current
    63 A
  • System Voltage
    120 V
  • Protection
    IP20
  • Operating Temperature
    -30 to 60 Degree C
  • Note
    Noise :- 40 dB, Communication function :- RS485/USB/GPRS/Ethemet, Cooling method :- Forced air cooling
View details on the manufacturer's website
