RAC25-K/480 Series

Download Datasheet Request Quote

Note : Your request will be directed to Recom Power.

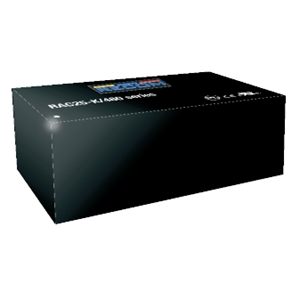

RAC25-K/480 Series Image

The RAC25-K/480 Series from Recom Power is a AC to DC Converter with AC Input Voltage 85 to 528 V, AC Input Current 0.4 to 0.5 A, DC Input Voltage 120 to 750 V, DC Output Voltage 5 to 24 V, DC Output Current 1.04 to 5 A. Tags: PCB Mount. More details for RAC25-K/480 Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RAC25-K/480 Series
  • Manufacturer
    Recom Power
  • Description
    85 to 528 V, 5 to 24 V, 1.04 to 5 A, 25 W, AC to DC Converter

General

  • Types of Converter
    Uncontrolled Rectifier View all
  • Configuration
    Isolated View all
  • Number of Output
    Single View all
  • AC Input Voltage
    85 to 528 V
  • AC Input Current
    0.4 to 0.5 A
  • DC Input Voltage
    120 to 750 V
  • DC Output Voltage
    5 to 24 V
  • DC Output Current
    1.04 to 5 A
  • DC Output Power
    25 W
  • Switching Frequency
    47 to 63 Hz
  • Line Regulation Voltage
    ±2%
  • Load Regulation Voltage
    2%
  • Temperature operating range
    -40 to 90 Degree C
  • RoHS Compliant
    Yes View all
  • Industry
    Industrial, Commercial
  • Dimensions
    83.23 x 46.43 x 30.40 mm
  • Package Type
    PCB Mount View all
  • Note
    Isolation Voltage :- 4 kV
