PSDG-48 Series

Download Datasheet Request Quote

Note : Your request will be directed to Gaia Converter.

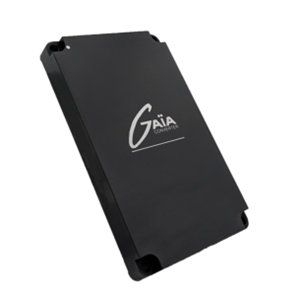

PSDG-48 Series Image

The PSDG-48 Series from Gaia Converter is a DC to DC Converter with Input Voltage 16 to 60 V, Output Voltage 1 -24 to 24 V, Output Power 8 to 40 W, Isolation Voltage 1.5 kV, Operating Temperature -40 to 105 Degree C. Tags: Screw Mount. More details for PSDG-48 Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PSDG-48 Series
  • Manufacturer
    Gaia Converter
  • Description
    -24 to 24 V, 8 to 40 W, DC to DC Converter

General

  • Configuration
    Isolated View all
  • Number of Output
    Triple
  • Input Voltage
    16 to 60 V
  • Output Voltage 1
    -24 to 24 V
  • Output Power
    8 to 40 W
  • Isolation Voltage
    1.5 kV
  • Efficiency
    88%
  • Operating Temperature
    -40 to 105 Degree C
  • Industry
    Space, Military, Industrial, Commercial
  • Package Type
    Screw Mount View all
  • Dimension
    91.4 x 54.6 x 10.3 mm
  • Frequency
    285 kHz
  • Regulation
    ±2%
  • ROHS
    Yes
  • Storage Temperature
    -55 to 125 Degree C
  • Application
    Mil -Aero, Mil-Ground-borne, Naval, Civilian Avionic
