PDCD10184

DC to DC Converter by Premier Magnetics (342 more products)

Note : Your request will be directed to Premier Magnetics.

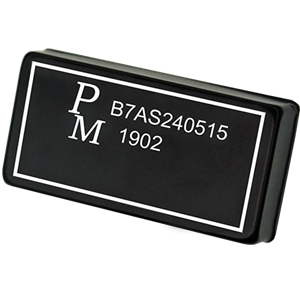

PDCD10184 Image

The PDCD10184 from Premier Magnetics is an Isolated Buck DC-DC Converter that converts an input voltage of 24 V to an output voltage of +/-9 V. It delivers an output power of 1 W and has an efficiency of 75%. This isolated converter offers high performance while maintaining low cost, making it suitable for telecommunications, industrial, data acquisition, embedded systems, or any application where efficient distributed power is required. It withstands an isolation voltage of up to 5200 V and is available in a PCB-mount package.

Product Specifications

View similar products

Product Details

  • Part Number
    PDCD10184
  • Manufacturer
    Premier Magnetics
  • Description
    1 W Isolated Buck DC-DC Converter for Telecom Applications

General

  • Type
    Buck/Step down
  • Configuration
    Isolated
  • Number of Output
    Dual
  • Input Voltage
    24 V
  • Output Voltage 1
    -9 to 9 V
  • Output Current 1
    0.056 A
  • Output Power
    1 W
  • Output Voltage 2
    -9 V
  • Output Current 2
    -0.056 A
  • Isolation Voltage
    5200 V
  • Efficiency
    75 %
  • Operating Temperature
    -40 to 85 Degree C
  • Industry
    Medical, Commercial, Industrial
  • Package Type
    PCB Mount
  • Package
    SIP
  • Application
    Low cost power conversion solutions for telecommunications, data acquisition, embedded systems
  • Capacitance
    10 pF
  • Regulation
    1.2%(Line)
  • Ripple Voltage
    50 mVpp
  • ROHS
    Yes
  • Storage Temperature
    -55 to 125 Degree C
