REM60-2415DW

DC to DC Converter by Recom Power (1244 more products)

Note : Your request will be directed to Recom Power.

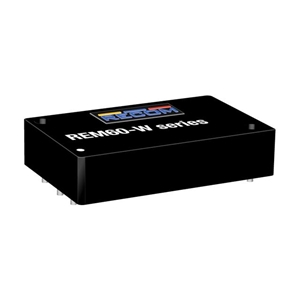

REM60-2415DW Image

The REM60-2415DW from Recom Power is a Dual Output Medical Grade DC-DC Converter that converts an input voltage of 9 - 36 V to output voltages of ±15 V. It delivers an output power of up to 60 W and has an efficiency of 90%. This converter is 60601-1 3rd Ed. certified for reinforced insulation at 250 VAC working voltage to enhance energy efficiency. It has a clearance and creepage distance greater than 8 mm leading to a low leakage current useful for power efficient applications. This buck-boost converter provides regulated outputs that can operate down to zero load and integrates short circuit and overload protection to provide safe operations. It is available in a PCB-mount package that measures 57.9 x 36.8 mm.

Product Specifications

View similar products

Product Details

  • Part Number
    REM60-2415DW
  • Manufacturer
    Recom Power
  • Description
    60 W Medical-Grade Dual Output DC-DC Converter

General

  • Type
    Buck-Boost
  • Configuration
    Isolated
  • Number of Output
    Dual
  • Input Voltage
    9 to 36 V
  • Output Voltage 1
    15 V
  • Output Current 1
    2000 mA
  • Output Power
    60 W
  • Output Voltage 2
    -15 V
  • Output Current 2
    -2000 mA
  • Isolation Voltage
    5 kV
  • Efficiency
    90 %
  • Operating Temperature
    -40 to 105 Degree C
  • Industry
    Medical, Military, Commercial, Industrial
  • Package Type
    PCB Mount
  • Dimension
    57.9 x 36.8 mm
  • Capacitance
    40 pF
  • Frequency
    225 to 275 kHz
  • Regulation
    ±0.2% (Line), 1% (Load)
  • Ripple Voltage
    100 mVpp
  • ROHS
    Yes
  • Weight
    51 g
  • Storage Temperature
    -55 to 125 Degree C
