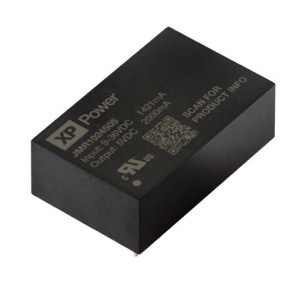

The JMR10 Series from XP Power are Regulated DC-DC Converters that convert input voltages of 4.5-75 V to single and dual output voltages of up to +/-15 V DC. These ultra-compact converters deliver an output current of up to 2000 mA, an output power of 10 W and have efficiencies of up to 89%. They offer continuous short circuit protection and offer remote on/off controls. These IEC 60601-1-compliant converters provide overvoltage and overload protection. They offer a 4:1 input voltage range and offer a ±10% output trim on single-output versions featuring low-no-load power.

These converters have 2 x MOPP 5kVAC reinforced isolation and extremely low leakage currents benefitting system designers with easy integration into a wide range of BF and CF-rated medical applications, including imaging, patient monitoring, surgical equipment, patient treatment and dentistry. These converters are available in through-hole packages that measure 31.8 x 20.3 x 10.2 mm and are ideal for healthcare, home healthcare and medical diagnostics applications.
