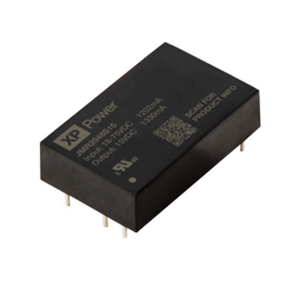

The JMR2024S12 from XP Power is a Regulated Medical DC-DC Converter that converts an input voltage of 9-36 V to an output voltage of 12 V DC. This ultra-compact converter delivers an output current of 1670 mA, an output power of 20 W and has an efficiency of 88.5%. This converter is compliant with IEC 60601-1 medical safety standards. It offers continuous short circuit protection, remote on/off controls, overvoltage and overload protection.

This DC-DC converter has low no-load power, which increases efficiency and extends runtime in battery powered application. It offers a 4:1 input voltage range, with a ±10% output trim and operates from -40°C to +100°C. This converter has 2 x MOPP 5kVAC reinforced isolation and extremely low leakage currents benefitting system designers with easy integration into a wide range of BF and CF-rated medical applications. It is available in a through-hole package that measures 40.6 x 25.4 x 10.2 mm and is ideal for healthcare, home healthcare and medical diagnostics applications.
