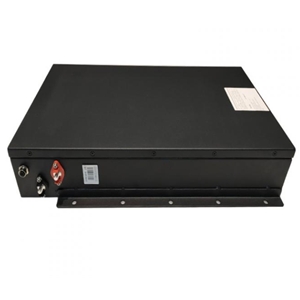

CTS-24200 Image

The CTS-24200 from CTS Technology is a Lithium Iron Phosphate Battery that is designed for electric boats. This LiFePO4 battery has a rated capacity of 200 Ah and an energy output of 5.12 kWh with a nominal voltage of 25.6 V. It features a low internal resistance of 20 milli-ohms and a self-discharge rate of less than 5% per month. This battery supports a maximum continuous discharge current of 100 A, with a peak discharge capability of 200 A. It supports a continuous charging current of 50 A and a peak charging current of 100 A. This battery measures 640 x 300 x 160 mm and weighs up to 30 kg.

Product Specifications

Product Details

  • Part Number
    CTS-24200
  • Manufacturer
    CTS Technology
  • Description
    200 Ah Lithium Iron Phosphate Battery

General

  • Vehicle Type
    Medium Duty Electric Vehicle View all
  • Cell Chemistry
    LiFePO4 View all
  • Battery Capacity
    200000 mAh
  • Nominal Voltage
    25.6 V
  • Charging Voltage
    29.2 V
  • Charging Current
    50 to 100 A
  • Discharging Voltage
    22.4 V
  • Discharging Current
    100 to 200 A
  • Energy Density
    5120 Wh
  • Battery Cycle
    3000 Cycle
  • Application
    Electric Boat, Electric Marine
  • Dimension
    640 x 300 x 160 mm ( L x W x H )
  • Note
    Charge Opertating Temperature :- 0 to 45 Degree, Weight :- 30.0 Kg
