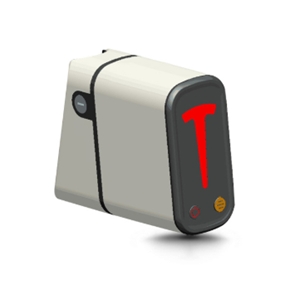

LI-TS360100 Image

The LI-TS360100 from Kinstar Electronics Technology is a Li-ion Electric Bike Battery designed for light electric mobility applications. It has a nominal voltage of 36 V and a battery capacity of 10.5 Ah. This EV battery delivers an output energy of approximately 378 Wh and supports a continuous discharge current ranging from 5-18 A. It is equipped with an integrated BMS that protects against overcharge, over-discharge, overcurrent, and short circuits, enhancing safety and battery lifespan. This EV battery measures 214 × 78 × 162 mm and weighs up to 2.25 kg. It is ideal for mountain ebikes, urban ebikes, and commuter bikes.

Product Specifications

Product Details

  • Part Number
    LI-TS360100
  • Manufacturer
    Kinstar Electronics Technology
  • Description
    10.5 Ah Li-ion Electric Vehicle Battery

General

  • Vehicle Type
    Light Duty Electric Vehicle View all
  • Cell Chemistry
    Lithium Ion View all
  • Battery Capacity
    10.5 Ah
  • Nominal Voltage
    36 V
  • Charging Voltage
    42 V
  • Charging Current
    2 to 3 A
  • Discharging Voltage
    27.5 V
  • Discharging Current
    5 to 18 A
  • Application
    e-Bike
  • Dimension
    214 x 78 x 162 mm (L x W x H)
  • Note
    Weight :- 2.25 kg, Energy :- 378 Wh
