High Voltage Li-Ion Batteries

EV Battery by Obrist Group

Note : Your request will be directed to Obrist Group.

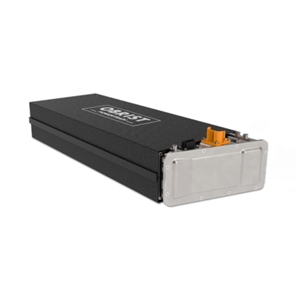

High Voltage Li-Ion Batteries Image

The High Voltage Li-Ion Batteries from Obrist Group are Li-Ion Batteries. They have a nominal voltage of 360 VDC and achieve 17.3 kWh at a battery capacity of 3000 mAh. These batteries have a continuous charging power of 26 kW and a discharging power of 110 kW. They are designed with vacuum fixation technology and integrate a battery management system for precise cell control and active thermal management. These liquid-cooled batteries offer maximum modularity with low costs and high flexibility with 18650 cells. They are provided with thermal insulation for longer service life and better performance and weigh 97.6 kg.

Product Specifications

Product Details

  • Part Number
    High Voltage Li-Ion Batteries
  • Manufacturer
    Obrist Group
  • Description
    3000 mAh Li Ion Batteries

General

  • Vehicle Type
    Medium Duty Electric Vehicle, Heavy Duty Electric Vehicle
  • Cell Chemistry
    Lithium Ion View all
  • Battery Capacity
    3000 mAh
  • Nominal Voltage
    240 to 420 V
  • Energy Density
    200 Wh/kg
  • Cooling
    Liquid Cooling
  • Application
    Electric Vehicle
  • Dimension
    159 x 348 x 1005 mm
  • Note
    Weight :- 97.6 kg, Energy :- 17.3 kWh, Charge Power :- 26 kW, Discharge Power :- 110 kW
