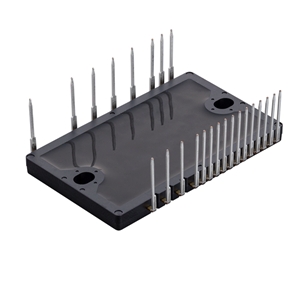

The 6MBP15XSJ065-50 from Fuji Electric is a 3-Phase Small IPM (Intelligent Power Module) that is ideal for AC 100 - 240 V three-phase inverter drive for small power and AC motor drive applications (such as compressor motor drive for air conditioners, compressor motor drive for heat pump applications, fan motor drive, ventilator motor drive). It has a collector-emitter voltage of up to 650 V, an input threshold voltage of 2.6 V, and a collector-emitter saturation voltage of up to 2.1 V. This IGBT has a peak collector current of 20 A and a peak forward current of less than 30 A. It integrates both high-side and low-side IGBTs with their drivers and protection circuitry. This IGBT includes an under-voltage lockout (UVLO) circuitry, a built-in temperature sensor at the output, a fault signal output function, and short-circuit protection (SCP). It is available in a package that measures 43 x 26 mm.
