SBSXPRO Series

Download Datasheet Request Quote

Note : Your request will be directed to Anderson Power.

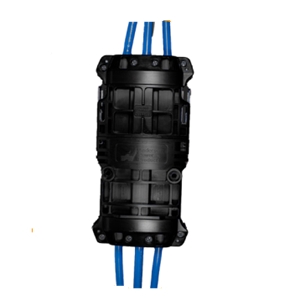

SBSXPRO Series Image

The SBSXPRO Series from Anderson Power is a Power Connector with Rated Voltage 600 V AC/DC, Rated Current 140 A, Withstand Voltage 2200 V, Contact Resistance 0.16 to 2.2 milli-ohm, Mating Force 29 N. More details for SBSXPRO Series can be seen below.

Product Specifications

Product Details

  • Part Number
    SBSXPRO Series
  • Manufacturer
    Anderson Power
  • Description
    600 V, 140 A, Power Connector

General

  • Gender
    Male, Female
  • Number of Poles
    Three View all
  • Rated Voltage
    600 V AC/DC
  • Rated Current
    140 A
  • Withstand Voltage
    2200 V
  • Body Material
    Polycarbonate (PC), Polybutylene Terephthalate(PBT)
  • Center Contact Material
    Silver Plated Copper Alloy
  • Contact Resistance
    0.16 to 2.2 milli-ohm
  • Mating Cycle
    5000 Operations
  • Mating Force
    29 N
  • Unmating Force
    29 N
  • Plating
    Gold
  • Shielding
    Unshielded
  • IP Rating Standard
    IP68 View all
  • Operating Temperature
    -20 to 105 Degree C
  • Mounting
    Panel Mount View all
  • Dimension
    83.8 x 55.9 x 73.9 mm
  • Note
    Flammability Rating :- UL94-V0,
