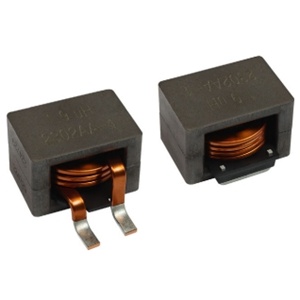

The IHDV0808ACFS1R9M3A from Vishay is an Automotive-Grade Power Inductor that is ideal for automotive on-board chargers (OBC), high-voltage inverters, power factor correction (PFC), and high-voltage DC battery filter applications. This inductor has an inductance of 1.9 µH, a soft-saturation current rating of up to 110 A, and a dynamic contact resistance (DCR) of up to 1.5 milliohms. This inductor provides high-temperature continuous operation up to 180°C with an isolation voltage of 1.5 kV DC. This RoHS-compliant inductor has a high impedance of 1 kΩ at an 80 MHz peak frequency for differential filtering applications. This AEC-Q200-qualified inductor is available in a through-hole package that measures 1.043 x 0.787 x 0.512 mm.
