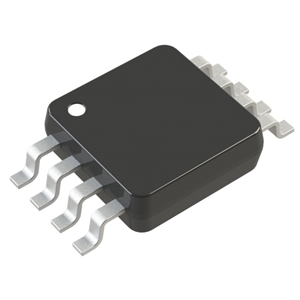

The AP2311M8G-13 from Diodes Incorporated is a Single Channel Current-Limited Integrated High-Side Power Switch that has been optimized for universal serial bus (USB), LCD TVs and monitors, set-top-boxes, residential gateways, laptops, desktops, servers, e-readers, printers, docking stations, and other routing applications. It requires an input voltage of 2.7 - 5.5 V and delivers an output current of up to 2.5 A. This switch has a fast short-circuit response time for improved overall system robustness and has an integrated output discharge function to ensure complete control of discharging the capacitor. It offers a protection solution for applications subject to heavy capacitive loads. This RoHS-compliant switch benefits from reverse current blocking, over-current, over-temperature, and short-circuit protection, as well as controlled rise time and under-voltage lockout functionality. It is available in a surface-mount package that measures 6.1 x 4.95 x 1.5 mm.
