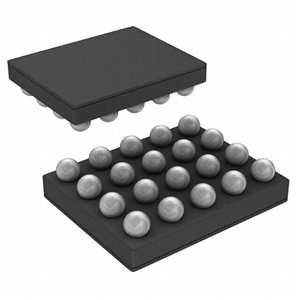

The NX30P6093AUKZ from NXP Semiconductors is an Over-Voltage Protection Load Switch that is ideal for smart and feature phones, tablets, eBooks, and notebook applications. It requires an input voltage of 2.8 - 20 V and provides an output current of up to 5.6 A. This power switch is equipped with under-voltage lockout, over-voltage lockout, and over-temperature protection circuits and automatically isolates power switch terminals during fault conditions. It features input pin impedance detection, providing USB power supply pin status to prevent short-circuit damage for the type-C port power supply. This power switch offers flexibility with an adjustable over-voltage protection threshold through external resistors and internal I²C interface register settings. It ensures smooth operation with a debounce time of 13 ms, followed by a controlled soft start, effectively limiting inrush current. This power switch enables USB on-the-go (OTG) functionality when the connected accessory is recognized, supporting up to 1.5 A in USB OTG mode. It is available in a surface-mount package that measures 2.19 x 1.73 x 0.565 mm.
