XC8108 Series

Power Switch IC by Torex Semiconductor (6 more products)

Note : Your request will be directed to Torex Semiconductor.

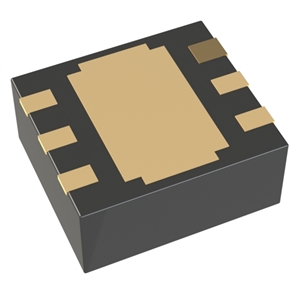

XC8108 Series Image

The XC8108 Series from Torex Semiconductor are  High-Function P-Channel MOSFET Power Switches that have been designed for set-top boxes, digital TVs, personal computers, USB ports/USB hubs, and HDMI applications. They require an input voltage of 2.5 - 5.5 V and provide an output current of 2 A. These power switches have a low ON resistance of 85 milli-ohms. It incorporates current limit, reverse current prevention, soft start, thermal shutdown, and under-voltage lockout (UVLO) protective functions. These switches have a flag function that monitors the power switch status. They feature a flag output that has an N-channel open drain structure and outputs a low-level signal while over-current or overheating is detected, or while the reverse current prevention is operated. These switches integrate a variable current limiting function that allows the current limit value to be set, using an external resistor. They provide status indications that are determined by the voltage level that is fed to the CE pin and the logic level of the CE pin is selectable between either active high or active low. These RoHS-compliant power switches are available in a surface mount package.

Product Specifications

Product Details

  • Part Number
    XC8108 Series
  • Manufacturer
    Torex Semiconductor
  • Description
    P-Channel MOSFET Power Switches for Set-Top Box Applications

General

  • Type of Power Switches
    Load Switch
  • Input Voltage
    2.5 to 5.5 V
  • Input Current
    2 A
  • Number of Output
    1
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 105 Degree
  • Applications
    Set-top boxes, Digital TVs, Personal computers, USB ports/USB hubs, and HDMI
  • Package Type
    Surface Mount
