SM102K06L

Note : Your request will be directed to Anysolar.

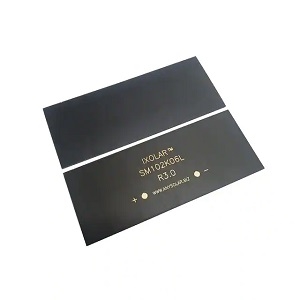

SM102K06L Image

The SM102K06L from Anysolar is a Monocrystalline Solar Cell that consists of 6 cells. It provides an output voltage of 3.35 V and an output current of 409 mA. This solar cell is based on monocrystalline Silicon technology and has a cell efficiency of 25%, thereby allowing it to operate even under low light conditions while offering an increased battery life and run time in a small footprint. It exhibits a very good photonic response over a wide range of wavelengths, making it suitable for both indoor and outdoor environments. The solar cell’s design allows it to connect flexibly in series and/or parallel to fulfill the custom-specific application’s power requirements. It is available in a panel-mount package that measures 133 x 52 x 1.8 mm and is ideal for charging various battery-powered and handheld consumer products such as mobile phones, PDAs, MP3-Players, toys, RFID tags, and camera applications.

Product Specifications

Product Details

  • Part Number
    SM102K06L
  • Manufacturer
    Anysolar
  • Description
    6-Cell Monocrystalline Solar Cell

General

  • Output Power
    1369 mW
  • Output Voltage
    3.35 V
  • Output Current
    409 mA
  • RoHS Compliant
  • Temperature Operating Range
    -40 to 90 Degree C
  • Industry
    Industrial
  • Applications
    Charging various battery-powered and handheld consumer products such as mobile phones, PDAs, MP3-Players, Toys, RFID tags, and Camera Applications
  • Dimension
    133 x 52 x 1.8 mm
  • Package Type
    Panel View all
