CS6W-530MB-AG

Note : Your request will be directed to Canadian Solar.

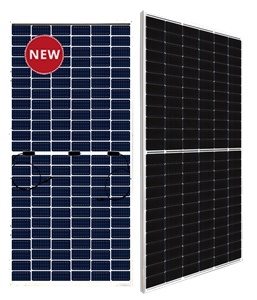

CS6W-530MB-AG Image

The CS6W-530MB-AG from Canadian Solar?is a Mono-Crystalline Solar Panel that is ideal for utility power plant applications. This solar panel requires an input voltage of 40.9 V. It delivers an output power of 530 W and has an efficiency of 20.5%. This solar panel achieves high power and reliability with advanced LID/LeTID mitigation technology, reducing degradation by up to 50%. It is designed to withstand heavy snow loads of up to 5400 Pa and wind loads of less than 2400 Pa. This solar panel minimizes impact due to micro-cracks. It is compatible with mainstream trackers, making it a cost-effective solution for utility power plants. This solar panel is available in a panel-mount package that measures 1134 x 2278 x 30 mm.

Product Specifications

Product Details

  • Part Number
    CS6W-530MB-AG
  • Manufacturer
    Canadian Solar
  • Description
    530 W Mono-Crystalline Solar Panel

General

  • Output Power
    530 W
  • Output Voltage
    40.9 V
  • Output Current
    12.96 A
  • Temperature Operating Range
    -40 to 85 Degree C
  • Industry
    Industrial, Commercial
  • Applications
    Utility Power Plant Applications
  • Dimension
    2278 x 1134 x 30 mm
  • Package Type
    Panel View all
  • Note
    Bifacial Power (Pmax) :- 557 to 636 W, Bifacial Module Efficiency :- 21.5 to 24.6 %, Weight :- 32.3 Kg, Bifacial Monocrystalline Panel

Technical Documents
