G2X-Bifacial-1702-HAD

Note : Your request will be directed to GautamSolar.

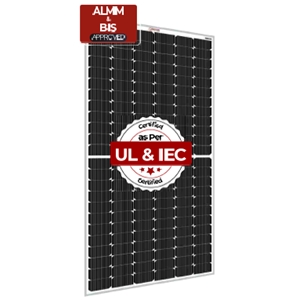

G2X-Bifacial-1702-HAD Image

The G2X-Bifacial-1702-HAD from GautamSolar is a Bifacial Mono-Crystalline Solar Panel. It delivers an output power of 540 W (peak) and has an efficiency of 20.90%. This solar panel features a split junction box with an individual bypass diode that minimizes power losses due to shading. It has connectors that are IP 68-rated and MC4-compatible. This IP 68-rated solar panel is available in a panel-mount configuration that measures 2278 x 1134 x 35 mm and is ideal for utility and commercial installations.

Product Specifications

Product Details

  • Part Number
    G2X-Bifacial-1702-HAD
  • Manufacturer
    GautamSolar
  • Description
    540 W Bifacial Mono-Crystalline Solar Panel

General

  • Output Power
    540 W
  • Output Voltage
    41.80 V
  • Output Current
    12.92 A
  • Temperature Operating Range
    -40 to 85 Degree C
  • Industry
    Industrial, Commercial
  • Dimension
    2280 x 1134 x 35 mm ( L x W x T )
  • Package Type
    Panel View all
  • Note
    Bifacial Module Efficiency Eff (%) :- 22.97 to 27.15 %, Bifacial Power :- 594 to 702 W, Bifacial Monocrystalline Panel
