RS8I-M HC 535-560W Series

Download Datasheet Request Quote

Note : Your request will be directed to Resun Solar.

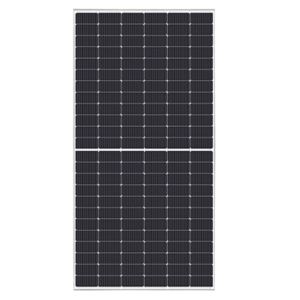

RS8I-M HC 535-560W Series Image

The RS8I-M HC 535-560W Series from Resun Solar is a Solar Panels with System Voltage 1500 V, Output Power 535 to 560 W (STC), 405 to 424 W (NOCT), Output Voltage 41.47 to 42.28 V (STC), 38.78 to 39.89 V (NOCT), Output Current 12.90 to 13.25 A (STC), 10.43 to 10.63 A (NOCT), Open Circuit Voltage 49.45 to 50.20 V (STC), 46.31 to 48.94 V (NOCT). Tags: Panel. More details for RS8I-M HC 535-560W Series can be seen below.

Product Specifications

Product Details

  • Part Number
    RS8I-M HC 535-560W Series
  • Manufacturer
    Resun Solar
  • Description
    560 W, 13.25 A, 42.28 V, Monocrystalline Solar Panel

General

  • Solar Panel Type
    Monocrystalline View all
  • System Voltage
    1500 V
  • Output Power
    535 to 560 W (STC), 405 to 424 W (NOCT)
  • Output Voltage
    41.47 to 42.28 V (STC), 38.78 to 39.89 V (NOCT)
  • Output Current
    12.90 to 13.25 A (STC), 10.43 to 10.63 A (NOCT)
  • Open Circuit Voltage
    49.45 to 50.20 V (STC), 46.31 to 48.94 V (NOCT)
  • Short Circuit Current
    13.79 to 14.14 A (STC), 11.05 to 11.25 A (NOCT)
  • Efficiency
    20.70 to 21.67 %
  • Series Fuse Rating
    25 A
  • Cell Configuartion
    Half-cell
  • Cell Count
    144 ( 6 x 24 ) Cells
  • Bus Bar
    9
  • Cable
    4mm²(IEC)/12AWG(UL), 350mm(+), 450mm (-) or customized
  • Connector
    MC4
  • Temperature Operating Range
    -40 to 85 Degree C
  • Industry
    Industrial, Commercial
  • Dimension
    2279 x 1134 x 35 mm
  • Package Type
    Panel View all
  • IP Rating
    IP68
  • Weight
    28.6 Kg
