SPM065P-WP-N

Note : Your request will be directed to SolarTech Power.

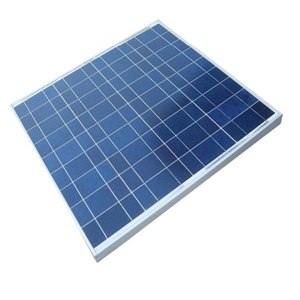

SPM065P-WP-N Image

The SPM065P-WP-N from SolarTech Power is a Polycrystalline Solar Panel that is ideal for traffic and safety, agriculture, security, telecommunications, weather and environmental monitoring, emergency power, telemetry, SCADA, RTU, GPS and marine applications. This solar panel requires an input voltage of 24 V. It delivers an output power of 65 W and has an efficiency of 12.2%. This solar panel features an accessible junction box with 2 MC4 style 3 ft leads for easy installation. It benefits from EVA with TPT which cushions the solar cells within the laminate and ensures optimal operating characteristics of the solar cell under virtually any climatic condition. This solar panel has a rigid anodized Aluminum frame, low-iron tempered glass and easily accessible grounding points on all four corners for fast installation. It is available in a panel-mount package that measures 987 x 540 x 35 mm.

Product Specifications

Product Details

  • Part Number
    SPM065P-WP-N
  • Manufacturer
    SolarTech Power
  • Description
    65 W Polycrystalline Solar Panel for Security Applications

General

  • Output Power
    65 W
  • Output Voltage
    36 V
  • Output Current
    1.81 A
  • Temperature Operating Range
    -40 to 90 Degree C
  • Industry
    Industrial, Commercial
  • Applications
    Traffic & Safety, Federal Government, Agricultural, Security, Telecommunications, Water and Wastewater, Weather & Environmental Monitoring, RV Camper, Emergency Power, Telemetry, SCADA, RTU, GPS, Marine, Area Lighting & Sign, Wi-Fi & Wi=Max, Fence & Gate
  • Dimension
    987 x 540 x 35 mm
  • Package Type
    Panel View all
  • Note
    Weight :- 7.0 Kg , Module Efficiency Eff (%) :- 12.2 %, Open Circuit Voltage (Voc) :- 43.0 V, Short Circuit Current (Isc) :- 1.95 A, Polycrystalline Panel

Technical Documents
