120PM12 Series

Download Datasheet Request Quote

Note : Your request will be directed to Tommatech.

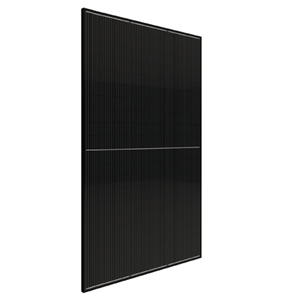

120PM12 Series Image

The 120PM12 Series from Tommatech is a Solar Panels with System Voltage 1500 VDC, Output Power 590 to 610 W, Output Voltage 34.10 to 34.70 V, Output Current 17.30 to 17.58 A, Open Circuit Voltage 41.10 to 41.90 V. Tags: Panel. More details for 120PM12 Series can be seen below.

Product Specifications

Product Details

  • Part Number
    120PM12 Series
  • Manufacturer
    Tommatech
  • Description
    610 W, 17.58 A, 34.7 V, Monocrystalline Solar Panel

General

  • Solar Panel Type
    Monocrystalline View all
  • Technology
    PERC (Passivated Emitter and Rear Cell) View all
  • System Voltage
    1500 VDC
  • Output Power
    590 to 610 W
  • Output Voltage
    34.10 to 34.70 V
  • Output Current
    17.30 to 17.58 A
  • Open Circuit Voltage
    41.10 to 41.90 V
  • Short Circuit Current
    18.33 to 18.62 A
  • Efficiency
    20.85 to 21.55 %
  • Series Fuse Rating
    25 A
  • Cell Configuartion
    Half-cell
  • Cell Count
    120 (6 x 20) Cells
  • Cable
    350-1600 mm
  • Temperature Operating Range
    -40 to 85 Degree C
  • Industry
    Industrial, Commercial
  • Dimension
    2172 x 1303 x 35 mm
  • Package Type
    Panel View all
  • IP Rating
    IP68
  • Weight
    31.0 Kg
