SM91207L-E

Power Transformer by Bourns (22 more products)

Note : Your request will be directed to Bourns.

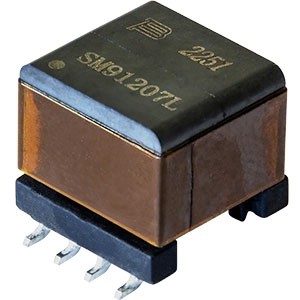

SM91207L-E Image

The SM91207L-E from Bourns is a Push-Pull Isolation Transformer that is ideal for photovoltaic inverters, protective relays, factory automation, low/medium risk medical equipment, motor drivers: IGBT and SiC gate driver power supplies, isolation power supply for Controller Area Network (CAN), and low-power LAN applications. It has a primary voltage of 24 V and has an inductance of 430 µH. This transformer has a DC resistance of up to 0.4 ohms and a turns ratio of 1.364. It is designed using EP-10 structure based on push-pull design and can be used with Texas Instruments' SN6507 transformer driver. This RoHS-compliant transformer is compliant with IEC/UL 62368-1 and can withstand a working voltage of 400 V per functional insulation. It is available in a surface-mount package that measures 13.2 x 11.8 x 11.6 mm.

Product Specifications

Product Details

  • Part Number
    SM91207L-E
  • Manufacturer
    Bourns
  • Description
    Push-Pull Isolation Transformer for Factory Automation Applications

General

  • Types of Transformer
    Isolation Transformer, Push Pull Transformer
  • Industry
    Industrial
  • Primary Voltage
    24 V
  • Secondary Voltage
    15 V
  • Current Rating
    500 mA
  • Inductance
    430 µH
  • Turns Ratio
    1.364
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Applications
    Photovoltaic inverters, protective relays, factory automation, low/medium risk medical equipment, Motor drivers: IGBT and SiC gate driver power supplies, Isolation power supply for Controller Area Network (CAN), RS-485, RS-422, RS-232, SPI, I2C, low-power LAN
  • Dimension
    13.2 x 11.8 x 11.6 mm
  • Package Type
    Surface Mount
