ROF-78K-0.5 Series

Download Datasheet Request Quote

Note : Your request will be directed to Recom Power.

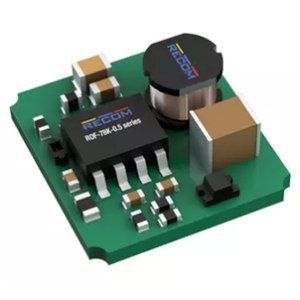

ROF-78K-0.5 Series Image

The ROF-78K-0.5 Series from Recom Power is a DC to DC Converter with Input Voltage 4.5 to 36 V, Output Voltage 1 3.3 to 24 V, Output Current 1 0.5 A, Operating Temperature -40 to 105 Degree C, Storage Temperature -55 to 125 Degree C. Tags: Surface Mount, Buck/Step down. More details for ROF-78K-0.5 Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ROF-78K-0.5 Series
  • Manufacturer
    Recom Power
  • Description
    3.3 to 24 V, 0.5 A, Buck/Step down DC to DC Converter

General

  • Type
    Buck/Step down View all
  • Configuration
    Non-Isolated View all
  • Number of Output
    Single
  • Input Voltage
    4.5 to 36 V
  • Output Voltage 1
    3.3 to 24 V
  • Output Current 1
    0.5 A
  • Efficiency
    83 to 95%
  • Operating Temperature
    -40 to 105 Degree C
  • Industry
    Industrial, Commercial
  • Package Type
    Surface Mount View all
  • Package
    SMD
  • Dimension
    12.5 x 13.5 x 4.5 mm
  • Capacitance
    270 to 1500 µF
  • Frequency
    400 kHz
  • Regulation
    ± 1.0 %
  • Ripple Voltage
    100 mVp-p
  • ROHS
    Yes
  • Weight
    0.88 Gram
  • Storage Temperature
    -55 to 125 Degree C
  • Application
    Building & Homeautomation, Energy, Datacom & Telecom, Industrial & Automation, Test & Measurement

Technical Documents
View details on the manufacturer's website
