AHV85311KNLSR

Request Quote

Note : Your request will be directed to Allegro MicroSystems.

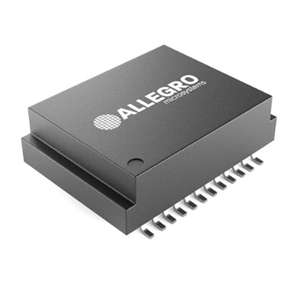

AHV85311KNLSR Image

The AHV85311KNLSR from Allegro MicroSystems is a Gate Driver with Input Voltage 10.5 to 13.2 V, Isolation Voltage 1.5 to 8 kV, Output Current 6 A, Propagation Delay 50 ns, Temperature operating range -40 to 125 Degree C. Tags: Surface Mount. More details for AHV85311KNLSR can be seen below.

Product Specifications

Product Details

  • Part Number
    AHV85311KNLSR
  • Manufacturer
    Allegro MicroSystems
  • Description
    10.5 to 13.2 V, Isolated Gate Driver IC

General

  • Technology
    SiC FET
  • Configuration
    Isolated
  • No of Drivers
    Single View all
  • Number of Outputs
    Single
  • Input Voltage
    10.5 to 13.2 V
  • Isolation Voltage
    1.5 to 8 kV
  • Output Current
    6 A
  • Propagation Delay
    50 ns
  • Temperature operating range
    -40 to 125 Degree C
  • Industry
    Commercial, Industrial
  • Package Type
    Surface Mount View all
  • Applications
    DC-DC Converter, Auxilary Inverter, On-board Charger, Server Power, C&I Solar String Inverters
  • Note
    Working Voltage :- 1500 V
