TESDA26VU55P2Q3

Download Datasheet Request Quote

Note : Your request will be directed to Taiwan Semiconductor.

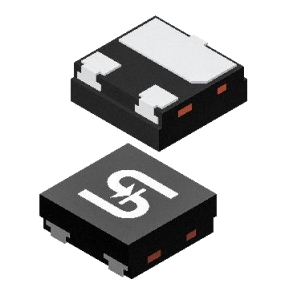

TESDA26VU55P2Q3 Image

The TESDA26VU55P2Q3 from Taiwan Semiconductor is a Power Diode with Dynamic Resistance 0.4 ohm, Forward Voltage 0.9 V, Reverse Current 0.005 µA, Reverse Voltage 26 V, Peak Reverse Voltage 26 V. Tags: Surface Mount. More details for TESDA26VU55P2Q3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TESDA26VU55P2Q3
  • Manufacturer
    Taiwan Semiconductor
  • Description
    26 V, Uni-directional ESD Protection Diode

General

  • Types of Diode
    Protection Diode View all
  • Configuration of Diode
    Dual Diode View all
  • Dynamic Resistance
    0.4 ohm
  • Forward Voltage
    0.9 V
  • Reverse Current
    0.005 µA
  • Reverse Voltage
    26 V
  • Peak Reverse Voltage
    26 V
  • Industry
    Industrial, Commercial
  • Qualification
    AEC-Q101
  • RoHS Compliant
    Yes View all
  • Temperature operating range
    -55 to 150 Degree C
  • Reverse Breakdown Voltage
    31.35 to 34.65 V
  • Applications
    Portable electronics, Computers and peripherals, Smartphones and accessories
  • Package Type
    Surface Mount View all
  • Package
    DFN1010-3LW
  • Total Capacitance
    49.5 to 55 pF
  • Note
    Peak Pulse Power :- 40 W, Peak Pulse Current :- 0.87 A
