IHDV1008BBEV100M3A

Download Datasheet Request Quote

Note : Your request will be directed to Vishay.

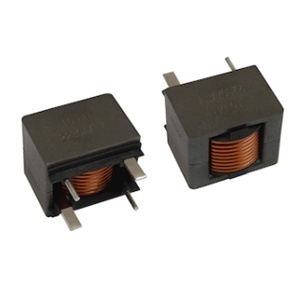

IHDV1008BBEV100M3A Image

The IHDV1008BBEV100M3A from Vishay is a Power Inductor with Inductance 10 µH, Inductance Tolerance ±20%, DCR 2.7 to 2.9 milli-ohm, Saturation Current 53 to 68 A, SRF 22 MHz. Tags: Through Hole. More details for IHDV1008BBEV100M3A can be seen below.

Product Specifications

Product Details

  • Part Number
    IHDV1008BBEV100M3A
  • Manufacturer
    Vishay
  • Description
    10 µH, 53 to 68 A, Power Inductor

General

  • Types of Inductor
    Shielded Inductor View all
  • Industry
    Automotive, Industrial, Commercial
  • Inductance
    10 µH
  • Inductance Tolerance
    ±20%
  • DCR
    2.7 to 2.9 milli-ohm
  • Saturation Current
    53 to 68 A
  • SRF
    22 MHz
  • Qualification
    AEC-Q200 View all
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 180 Degree C
  • Dimension
    25 x 19.8 x 23 mm
  • Applications
    On-board chargers (OBC), High voltage inverters and systems, Power factor correction (PFC), High voltage DC battery filter
  • Package Type
    Through Hole View all
  • Note
    Heat Rated Current :- 30 A, Isolation Voltage :- 1.5 kV, Weight :- 47.1 g
