AD826ANZ

Power Operational Amplifier by Analog Devices (306 more products)

Note : Your request will be directed to Analog Devices.

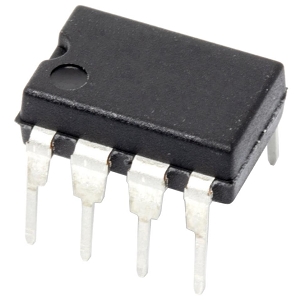

AD826ANZ Image

The AD826ANZ from Analog Devices is a High-Speed Dual-Channel Operational Amplifier that has been designed to drive heavy capacitive and resistive loads. It requires a supply voltage from -18 V to +18 V, an input offset current of 25 nA, and an input bias current of 3.3 nA. This amplifier provides an output current of over 50 mA and an open loop gain of 4 V/mV. It has a common mode rejection ratio (CMRR) of 100 dB. This op-amp is ideal for use in applications that require unity gain stability and high output drive capability, such as buffering and cable driving. It consists of a degenerated NPN differential-pair driving matched PNPs in a folded-cascade gain stage. This amplifier uses Class AB-based emitter followers at the output buffer to deliver the necessary current to the load while maintaining low levels of distortion. It ensures an excellent DC and good video performance over the operating temperature range.

This op-amp is available in a through-hole package that measures 0.4 x 0.28 x 0.210 inches and is ideal for unity gain ADC/DAC buffer, cable drivers, 8/10-bit data acquisition systems, video line drivers, active filters, video cameras, and portable instrumentation applications.

Product Specifications

Product Details

  • Part Number
    AD826ANZ
  • Manufacturer
    Analog Devices
  • Description
    Dual-Channel Operational Amplifier for ADC/DAC Applications

General

  • Type
    General Purpose Op Amp
  • Number of Channel
    Dual
  • Supply Voltage
    -18 to 18 V
  • Input Offset Voltage
    0.5 to 3 mV
  • Input Bias Current
    3.3 nA
  • Quiescent Current
    6.6 to 7.5 mA
  • Input Offset Current
    25 nA
  • Input Offset Voltage Drift
    10 µV/°C
  • Input Offset Current Drift
    0.3 nA/°C
  • Input Voltage Noise
    15 nV/vHz
  • Input Current Noise
    1.5 pA/vHz
  • Output Current
    50 mA
  • Output Voltage Swing
    1.5 to 13.7 V
  • Open Loop Gain
    4 V/mV
  • Gain Bandwidth
    50 MHz
  • CMRR
    100 dB
  • PSRR
    75 to 100 dB
  • Slew Rate
    150 to 350 V/µs
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -65 to 150 Degree C
  • RoHS Compliance
    Yes
  • Industry
    Industrial, Commercial
  • Dimension
    0.4 x 0.28 x 0.210 inches
  • Application
    Unity Gain ADC/DAC Buffer, Cable Drivers, 8- and 10-Bit Data Acquisition Systems, Video Line Driver, Active Filters
  • Package
    8-Lead PDIP
  • Package Type
    Through Hole
