DIO8358MP8

Download Datasheet Request Quote

Note : Your request will be directed to Dioo Microcircuits.

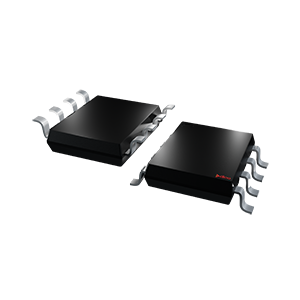

DIO8358MP8 Image

The DIO8358MP8 from Dioo Microcircuits is a Power Operational Amplifier with Supply Voltage 2.1 to 5.5, Input Offset Voltage ±3.5 mV, Input Bias Current 5 pA, Quiescent Current 40 uA, Input Offset Current 5 pA. Tags: Surface Mount, General Purpose Op Amp. More details for DIO8358MP8 can be seen below.

Product Specifications

Product Details

  • Part Number
    DIO8358MP8
  • Manufacturer
    Dioo Microcircuits
  • Description
    2.1 to 5.5 , 40 uA, Power operational Amplifier

General

  • Type
    General Purpose Op Amp View all
  • Number of Channel
    Dual View all
  • Supply Voltage
    2.1 to 5.5
  • Input Offset Voltage
    ±3.5 mV
  • Input Bias Current
    5 pA
  • Quiescent Current
    40 uA
  • Input Offset Current
    5 pA
  • Input Offset Voltage Drift
    5 µV/°C
  • Input Voltage Noise
    35 to 45 nV/vHz
  • Output Voltage
    0.0025 to 4.998 V
  • Output Current
    50 mA
  • Open Loop Gain
    80 to 110 dB
  • Gain Bandwidth
    1 MHz
  • CMRR
    65 to 75 dB
  • PSRR
    65 to 85 dB
  • Slew Rate
    0.6 V/us
  • Operating Temperature
    -40 to 125 Degree C
  • Storage Temperature
    -65 to 150 Degree C
  • RoHS Compliance
    Yes View all
  • Industry
    Medical, Industrial, Commercial
  • Application
    ASIC input or output amplifiers, Sensor interfaces, Piezoelectric transducer amplifiers, Medical instrumentation, Audio output, Portable systems, Smoke detectors, Notebook PCs, Battery-powered equipment
  • Package
    MSOP-8
  • Package Type
    Surface Mount View all
