XC9714 Series

Download Datasheet Request Quote

Note : Your request will be directed to Torex Semiconductor.

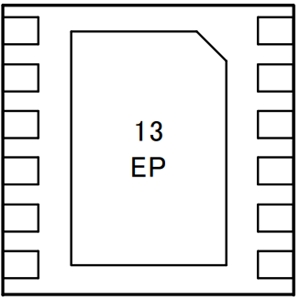

XC9714 Series Image

The XC9714 Series from Torex Semiconductor is a DC to DC Converter with Input Voltage 4.5 to 36 V, Output Voltage 1 2.5 to 18 V, Output Current 1 2.0 A, Operating Temperature -40 to 125 Degree C, Storage Temperature -55 to 150 Degree C. Tags: Surface Mount, Buck/Step down. More details for XC9714 Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    XC9714 Series
  • Manufacturer
    Torex Semiconductor
  • Description
    2.5 to 18 V, 2.0 A, Buck/Step down DC to DC Converter

General

  • Type
    Buck/Step down View all
  • Configuration
    Non-Isolated View all
  • Input Voltage
    4.5 to 36 V
  • Output Voltage 1
    2.5 to 18 V
  • Output Current 1
    2.0 A
  • Operating Temperature
    -40 to 125 Degree C
  • Industry
    Industrial, Commercial
  • Package Type
    Surface Mount View all
  • Package
    DFN3030-12A
  • Dimension
    3.0 x 3.0 x 0.75 mm
  • Frequency
    800 kHz
  • ROHS
    Yes
  • Storage Temperature
    -55 to 150 Degree C
  • Application
    12V Battery Systems, Industrial Automation, Industrial Sensors, Security Systems, Home Appliances / Power Tools, High-Voltage LDO Replacement, General-Purpose Power-circuit / Point-of-load
