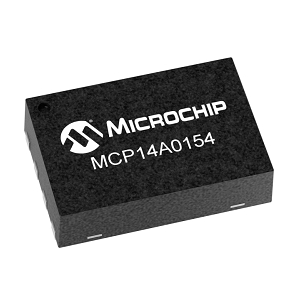

MCP14A0154 Image

MCP14A0154

Gate Driver IC by Microchip Technology

Note : Your request will be directed to Microchip Technology.

The MCP14A0154 from Microchip Technology is a Gate Driver IC with Input Voltage 4.5 to 18 V, Output Voltage 0.8 to 2 V, Output Current 1.5 A, Rise Time 11.5 ns, Fall Time 10 ns. Tags: Surface Mount. More details for MCP14A0154 can be seen below.

Product Specifications

Product Details

  • Part Number
    MCP14A0154
  • Manufacturer
    Microchip Technology
  • Description
    1.5 A Dual Channel MOSFET Driver

General

  • Types of Gate Driver
    Dual Channel Gate Driver IC
  • Technology
    MOSFET
  • No of Drivers
    Dual
  • Number of Outputs
    Dual
  • Input Voltage
    4.5 to 18 V
  • Output Voltage
    0.8 to 2 V
  • Output Current
    1.5 A
  • Rise Time
    11.5 ns
  • Fall Time
    10 ns
  • Propagation Delay
    24 to 32 ns
  • Temperature operating range
    -40 to 125 ºC
  • Industry
    Industrial
  • Package Type
    Surface Mount
  • Package
    SOIC
  • Applications
    motor drives, switch-mode power supplies, pulse transformer drive, line drivers, level translator, motor and solenoid drives
