1EDI3041AS

Download Datasheet Request Quote

Note : Your request will be directed to Infineon Technologies.

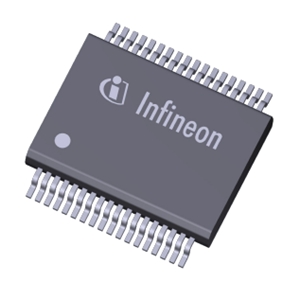

1EDI3041AS Image

The 1EDI3041AS from Infineon Technologies is a Gate Driver with Input Voltage 4.5 to 5.5 V, Output Current 20 A, Propagation Delay 60 ns. Tags: Surface Mount. More details for 1EDI3041AS can be seen below.

Product Specifications

Product Details

  • Part Number
    1EDI3041AS
  • Manufacturer
    Infineon Technologies
  • Description
    4.5 to 5.5 V, 20 A, Single Channel Gate Driver IC

General

  • Types of Gate Driver
    Single Channel Gate Driver View all
  • Technology
    IGBT, SiC MOSFET
  • Configuration
    Isolated
  • No of Drivers
    Single View all
  • Number of Outputs
    Single
  • Input Voltage
    4.5 to 5.5 V
  • Output Current
    20 A
  • Propagation Delay
    60 ns
  • RoHS Compliant
    Yes
  • Qualification
    AEC-Q100 View all
  • Industry
    Commercial, Industrial
  • Package Type
    Surface Mount View all
  • Package
    PG-LFDSO-36
  • Applications
    High-end traction inverters for HEV and EV, High power DC/DC converter
  • Note
    Voltage Class :- 1200 V
