MCP14H2103

Download Datasheet Request Quote

Note : Your request will be directed to Microchip Technology.

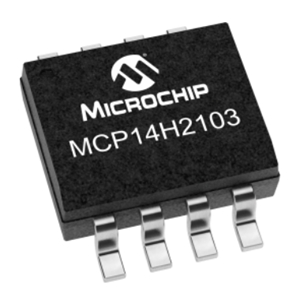

MCP14H2103 Image

The MCP14H2103 from Microchip Technology is a Gate Driver with Input Voltage 10 to 20 V, Output Voltage 0.02 to 0.2 V, Output Current 0.29 to 0.6 A, Rise Time 70 to 170 ns, Fall Time 35 to 90 ns. Tags: Surface Mount. More details for MCP14H2103 can be seen below.

Product Specifications

Product Details

  • Part Number
    MCP14H2103
  • Manufacturer
    Microchip Technology
  • Description
    10 to 20 V, Half Bridge Gate Driver IC

General

  • Types of Gate Driver
    Half Bridge Gate Driver View all
  • Technology
    MOSFET, IGBT
  • No of Drivers
    Dual View all
  • Number of Outputs
    Dual
  • Input Voltage
    10 to 20 V
  • Output Voltage
    0.02 to 0.2 V
  • Output Current
    0.29 to 0.6 A
  • Rise Time
    70 to 170 ns
  • Fall Time
    35 to 90 ns
  • Propagation Delay
    150 to 820 ns
  • Temperature operating range
    -40 to 125 Degree C
  • Industry
    Commercial, Industrial
  • Package Type
    Surface Mount View all
  • Package
    SOIC-8
  • Applications
    Motor Controls, DC-DC Converters, AC-DC Inverters, Motor Drives

Technical Documents
View details on the manufacturer's website
