MC33GD3100EK

Note : Your request will be directed to NXP Semiconductors.

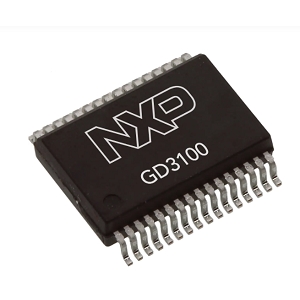

MC33GD3100EK Image

The MC33GD3100EK from NXP Semiconductors is an Advanced Single-Channel Gate Driver that has been designed to drive IGBTs and SiC Power MOSFET devices. It requires an input voltage of 5 -40 V. This gate driver is capable of driving gate pins of most of the IGBTs and SiC MOSFETs available in the market and integrates galvanically isolated, low on-resistance drive transistors to provide high charging and discharging current, low dynamic saturation voltage, and rail-to-rail gate voltage control. It ensures low propagation delay and minimal PWM distortion with a segmented drive operation that results in efficient wave shaping. This AEC-Q100 qualified gate driver uses Active Miller Clamp via a Zener diode across the collector-emitter terminals of IGBT/SiC to reduce the turn-off gate supply when an excessive amount of collector-emitter voltage is present and improve clamping tolerance.

The MC33GD3100EK supports the SPI interface to autonomously monitor, control, manage, and report fault conditions and also includes built-in self-test, watchdog, and control functions to ensure the design of high-reliability systems according to ASIL C/D standards. This driver IC is equipped with soft shutdown, under-voltage lockout (UVLO) protection, over-current protection (OCP), and over-temperature sense functions to prevent over-heating or short-circuit-related damages. It is available in a surface-mount package that measures 10.3 x 11.1 mm and is ideal for IGBT, MOSFET, and automotive electronics applications.

Product Specifications

Product Details

  • Part Number
    MC33GD3100EK
  • Manufacturer
    NXP Semiconductors
  • Description
    AEC-Q100 Qualified Advanced Single-Channel Gate Driver IC

General

  • Technology
    IGBT, SiC FET
  • No of Drivers
    Single
  • Number of Outputs
    Single
  • Input Voltage
    5 to 40 V
  • Output Current
    15 A
  • Temperature operating range
    -40 to 125 Degree C
  • RoHS Compliant
    Yes
  • Qualification
    AEC-Q100
  • Industry
    Automotive
  • Package Type
    Surface Mount
  • Package
    SSOP32
  • Dimensions
    10.3 x 11.1 mm
  • Applications
    IGBT, MOSFET, and automotive electronics applications
