  6. MCP14LH21814

MCP14LH21814

Download Datasheet Request Quote

Note : Your request will be directed to Microchip Technology.

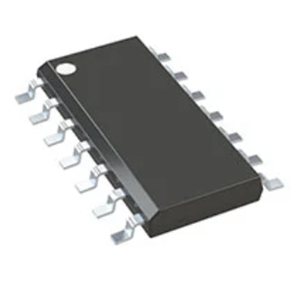

MCP14LH21814 Image

The MCP14LH21814 from Microchip Technology is a Gate Driver with Input Voltage 10 to 20 V, Output Voltage 0.2 to 1.4 V, Output Current 1.8 to 2.3 A, Rise Time 40 to 60 ns, Fall Time 20 to 35 ns. Tags: Surface Mount. More details for MCP14LH21814 can be seen below.

Product Specifications

Product Details

  • Part Number
    MCP14LH21814
  • Manufacturer
    Microchip Technology
  • Description
    10 to 20 V, High Side, Low Side Gate Driver IC

General

  • Types of Gate Driver
    High Side Gate Driver, Low Side Gate Driver
  • Technology
    MOSFET, IGBT
  • No of Drivers
    Dual View all
  • Number of Outputs
    Dual
  • Input Voltage
    10 to 20 V
  • Output Voltage
    0.2 to 1.4 V
  • Output Current
    1.8 to 2.3 A
  • Rise Time
    40 to 60 ns
  • Fall Time
    20 to 35 ns
  • Propagation Delay
    180 to 330 ns
  • Temperature operating range
    -40 to 125 Degree C
  • Industry
    Commercial, Industrial
  • Package Type
    Surface Mount View all
  • Package
    SOIC
  • Applications
    DC-DC Converters, AC-DC Inverters, Motor Controls, Motor Drivers, Class D Power Amplifiers

Technical Documents
View details on the manufacturer's website
