MGD3162AM551EK

Download Datasheet Request Quote

Note : Your request will be directed to NXP Semiconductors.

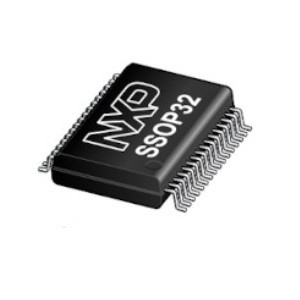

MGD3162AM551EK Image

The MGD3162AM551EK from NXP Semiconductors is a Gate Driver with Input Voltage -0.3 to 25 V, Isolation Voltage 8000 V, Output Current -20 mA, Temperature operating range -40 to 125 degree C. Tags: Surface Mount. More details for MGD3162AM551EK can be seen below.

Product Specifications

Product Details

  • Part Number
    MGD3162AM551EK
  • Manufacturer
    NXP Semiconductors
  • Description
    -0.3 to 25 V, -20 mA, Single Channel Gate Driver

General

  • Types of Gate Driver
    Single Channel Gate Driver View all
  • Technology
    IGBT, SiC MOSFET
  • Configuration
    Isolated
  • No of Drivers
    Single View all
  • Input Voltage
    -0.3 to 25 V
  • Isolation Voltage
    8000 V
  • Output Current
    -20 mA
  • Temperature operating range
    -40 to 125 degree C
  • RoHS Compliant
    Yes
  • Qualification
    AEC-Q100 View all
  • Industry
    Industrial, Commercial, Automotive
  • Package Type
    Surface Mount View all
  • Package
    SSOP32
  • Dimensions
    7.5 x 11 x 2.5 mm
