STGAP2HSAC

Download Datasheet Request Quote

Note : Your request will be directed to STMicroelectronics.

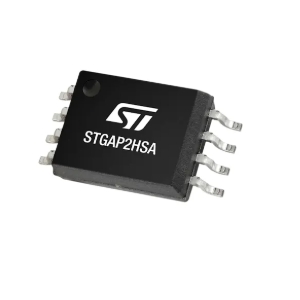

STGAP2HSAC Image

The STGAP2HSAC from STMicroelectronics is a Gate Driver with Input Voltage 3.1 to 4 V, Isolation Voltage 5 to 6 kV, Output Current 4 A, Rise Time 30 ns, Fall Time 30 ns. Tags: Surface Mount. More details for STGAP2HSAC can be seen below.

Product Specifications

Product Details

  • Part Number
    STGAP2HSAC
  • Manufacturer
    STMicroelectronics
  • Description
    3.1 to 4 V, Single Channel Gate Driver

General

  • Types of Gate Driver
    Single Channel Gate Driver View all
  • Technology
    MOSFET
  • Configuration
    Isolated
  • No of Drivers
    Single View all
  • Number of Outputs
    Single
  • Input Voltage
    3.1 to 4 V
  • Isolation Voltage
    5 to 6 kV
  • Output Current
    4 A
  • Rise Time
    30 ns
  • Fall Time
    30 ns
  • Propagation Delay
    40 to 90 ns
  • Temperature operating range
    -40 to 150 Degree C
  • RoHS Compliant
    Yes
  • Qualification
    AEC-Q100 View all
  • Industry
    Automotive, Commercial, Industrial
  • Package Type
    Surface Mount View all
  • Package
    SO-8W
  • Applications
    DC-DC converters, On-board charger (OBC), DC charging stations, Automotive HVAC compressors, Fans and pumps, Heaters, 600/1200 V inverters, Motor drivers for EV
