GANE350-700BBA

Download Datasheet Request Quote

Note : Your request will be directed to Nexperia.

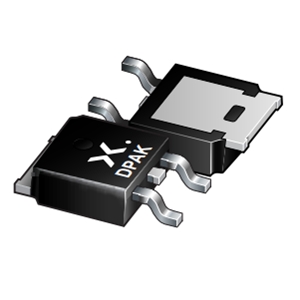

GANE350-700BBA Image

The GANE350-700BBA from Nexperia is a GaN Power Transistor with Gate Threshold Voltage 1.2 to 2.5 V, Drain Source Voltage 700 V, Drain Source Resistance 270 to 580 milli-ohm, Continous Drain Current 6 A, Pulsed Drain Current 6 to 10 A. Tags: Surface Mount. More details for GANE350-700BBA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GANE350-700BBA
  • Manufacturer
    Nexperia
  • Description
    700 V, 6 A, GaN Transistor

General

  • Configuration
    Single View all
  • Industry
    Industrial, Commercial
  • Gate Threshold Voltage
    1.2 to 2.5 V
  • Drain Source Voltage
    700 V
  • Drain Source Resistance
    270 to 580 milli-ohm
  • Continous Drain Current
    6 A
  • Pulsed Drain Current
    6 to 10 A
  • Total Charge
    1.5 nC
  • Input Capacitance
    50 pF
  • Output Capacitance
    15 pF
  • Turn-on Delay Time
    0.9 ns
  • Turn-off Delay Time
    1.2 ns
  • Rise Time
    3.5 ns
  • Fall Time
    6.1 ns
  • Temperature operating range
    -55 to 150 Degree C
  • RoHS Compliant
    Yes View all
  • Package Type
    Surface Mount View all
  • Package
    TO252
  • Applications
    High power density and high efficiency power conversion, AC-to-DC converters, Totem pole PFC, DC-to-DC converters, Fast battery charging, Mobile phone, Laptop, Tablet and USB type-C chargers, Datacom and telecom (AC-to-DC and DC-to-DC) converters, Motor drives, Solar (PV) inverters, Class D audio amplifiers, TV PSU and LED drivers
