IPF014N10NM8

Download Datasheet Request Quote

Note : Your request will be directed to Infineon Technologies.

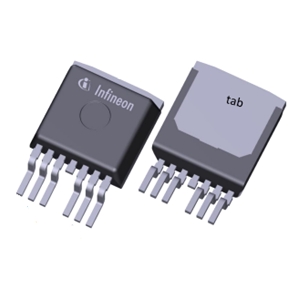

IPF014N10NM8 Image

The IPF014N10NM8 from Infineon Technologies is a MOSFET with Continous Drain Current 34 to 321 A, Drain Source Resistance 1.21 to 1.55 milli-ohm, Drain Source Breakdown Voltage 100 V, Gate Source Voltage ±20 V, Gate Source Threshold Voltage 2.4 to 3.2 V. Tags: Surface Mount. More details for IPF014N10NM8 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IPF014N10NM8
  • Manufacturer
    Infineon Technologies
  • Description
    100 V, 34 to 321 A, 3.8 to 357 W, N-Channel Enhancement Mode MOSFET

General

  • Types of MOSFET
    N-Channel Enhancement Mode View all
  • Transistor Polarity
    N-Channel View all
  • Number of Channels
    Single View all
  • Continous Drain Current
    34 to 321 A
  • Drain Source Resistance
    1.21 to 1.55 milli-ohm
  • Drain Source Breakdown Voltage
    100 V
  • Gate Source Voltage
    ±20 V
  • Gate Source Threshold Voltage
    2.4 to 3.2 V
  • Gate Charge
    160 to 200 nC
  • Power Dissipation
    3.8 to 357 W
  • Temperature operating range
    -55 to 175 Degree C
  • Industry
    Industrial, Commercial
  • RoHS Compliant
    Yes View all
  • Package Type
    Surface Mount View all
  • Package
    PG-TO263-7
